OEM Part Numbers & Cross-References

Technical Specifications

Product Description

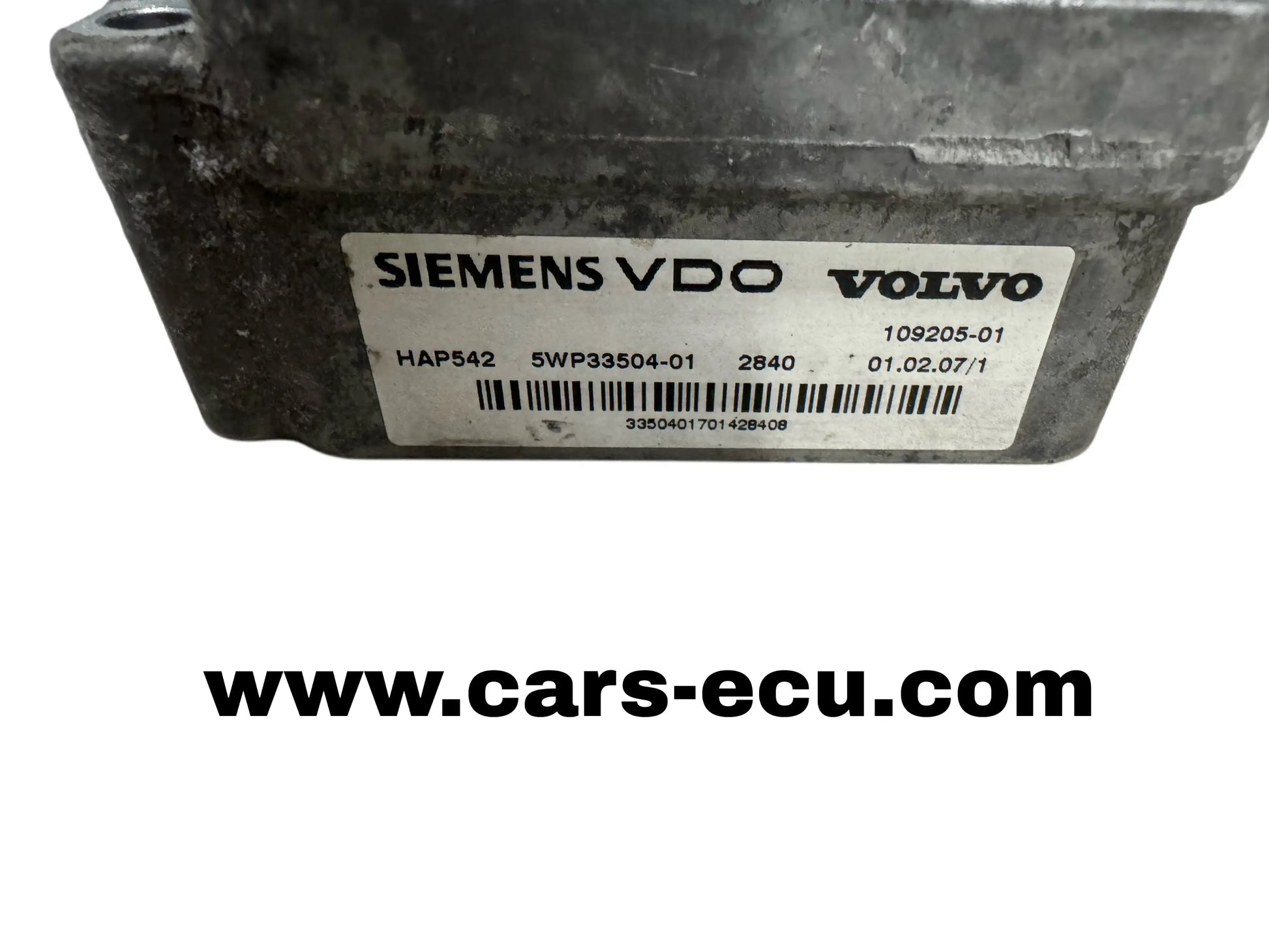

This is a used original Siemens Haldex control unit with OEM number 5WP33504-01, designed for Volvo AWD systems using the 3rd/4th generation Haldex coupling. The module functions as the electronic management unit of the rear differential system and controls torque transfer to the rear axle when traction is needed.

What This Control Unit Does

• Controls the Haldex coupling to engage rear-wheel drive when required
• Communicates with ABS / ESP and drivetrain systems
• Monitors AWD operation and stores diagnostic trouble codes
• Manages rear differential engagement strategy in the AWD system
• Helps restore proper AWD operation when the original ECU has failed

Vehicle Compatibility

Common Volvo applications for this Haldex control unit include the models below. Always confirm the part number on your current module before purchase.

Volvo

Common Diagnostic Faults & Symptoms

Problems with the Haldex control unit can cause the AWD system to stop working or operate intermittently. Common symptoms and diagnostic issues include:

Installation & Recommended Service

Installation Notes

• Disconnect the battery and safely access the rear differential Haldex module
• Remove the old control unit and inspect the connector for corrosion or moisture
• Install the replacement ECU carefully and reconnect all plugs securely
• Clear stored fault codes and check communication with a suitable diagnostic tool
• Carry out adaptation or additional diagnostic checks if required

Recommended While Replacing the Unit

• Inspect the control valve if related faults are stored
• Renew Haldex oil / service fluid
• Inspect wiring and connector condition
• Check for remaining AWD, ABS or anti-skid faults after fitting

Why Haldex Control Units Fail

1. Moisture Ingress & Corrosion

Water ingress, condensation or connector corrosion can interrupt communication and damage the internal electronics of the DEM module.

2. Control Valve or Hydraulic Faults

Related Haldex valve faults can overload the control strategy and trigger repeated AWD or anti-skid warnings.

3. Internal Electronic Failure

Age, vibration and thermal cycling can cause internal circuit or memory problems, leading to intermittent AWD operation or complete loss of rear drive control.

4. Wiring or Power Supply Problems

Damaged wiring, weak power supply or poor connector contact can create no-communication errors and unstable module behaviour.

Quality Assurance & Warranty

12-Month Warranty: This used Haldex control unit has been tested for correct operation and is supplied with a 12-month warranty under normal operating conditions.

Warranty Coverage Includes:

• Internal control unit malfunction
• Communication failures caused by the module itself
• Faults related to internal memory or controller operation

Warranty Exclusions:

• Incorrect installation or incompatible vehicle fitment
• External wiring, valve or drivetrain faults
• Physical damage, water damage after installation or mishandling

Questions or Need Help?

Our technical team is ready to assist with compatibility checks, installation guidance and diagnostics support.

Important Purchase Information

• Please verify the part number before ordering
• Worldwide shipping is available
• If your country is not listed at checkout, contact us and the order can be processed manually
• Diagnostic checks are recommended after installation
• This module should only be fitted where the original OEM number matches
