OEM Part Numbers & Cross-References

Technical Specifications

Product Description

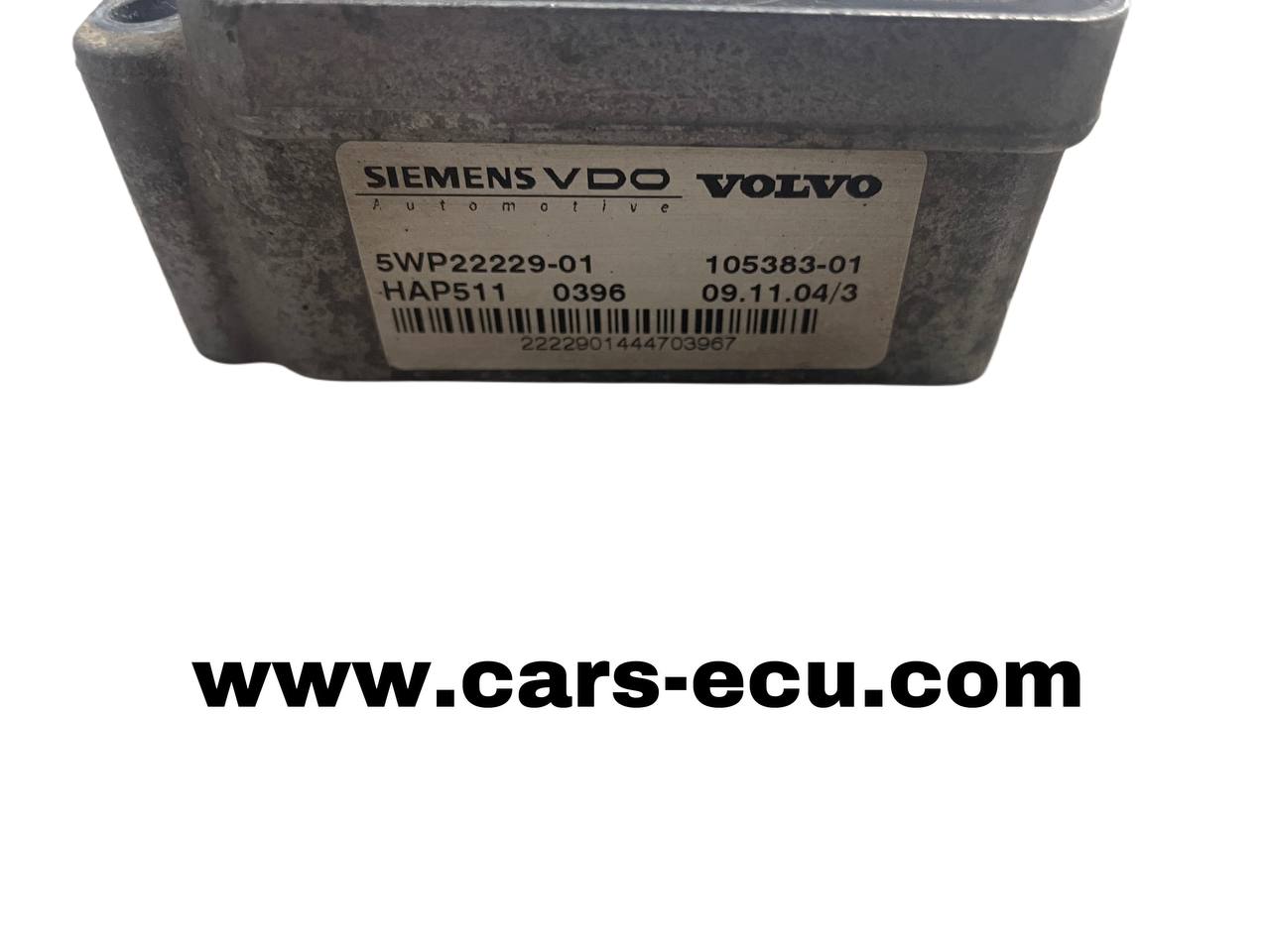

This is a used original Siemens Haldex control unit with OEM number 5WP22229-01, designed for second-generation Volvo AWD systems. The module functions as the electronic management unit of the rear differential system and controls torque transfer to the rear axle when traction is needed.

What This Control Unit Does

• Controls the Haldex coupling to engage rear-wheel drive when required
• Communicates with ABS / ESP and drivetrain systems
• Monitors AWD operation and stores diagnostic trouble codes
• Manages hydraulic clutch pressure strategy in the rear coupling
• Helps restore proper AWD operation when the original ECU has failed

Vehicle Compatibility

Common Volvo applications for this Haldex control unit include the models below. Always confirm the part number on your current module before purchase.

Volvo

Common Diagnostic Faults & Symptoms

Problems with the Haldex control unit can cause the AWD system to stop working or operate intermittently. Common symptoms and diagnostic issues include:

Installation & Recommended Service

Installation Notes

• Disconnect the battery and safely access the rear differential Haldex module
• Remove the old control unit and inspect the connector for corrosion or moisture
• Install the replacement ECU carefully and reconnect all plugs securely
• Clear stored fault codes and check communication with a suitable diagnostic tool
• Carry out coding if required by the vehicle after installation

Recommended While Replacing the Unit

• Inspect the Haldex control valve if faulty
• Renew Haldex oil / service fluid
• Inspect wiring and connector condition
• Check for remaining AWD, ESP or ABS faults after fitting

Why Haldex Control Units Fail

1. Moisture Ingress & Corrosion

Water ingress, condensation or connector corrosion can interrupt communication and damage the internal electronics of the DEM module.

2. Valve or Hydraulic System Faults

Related Haldex valve or hydraulic pressure issues can overload the control unit and trigger repeated AWD or actuator-related faults.

3. Internal Electronic Failure

Age, vibration and thermal cycling can cause internal circuit or memory problems, leading to intermittent AWD operation or complete loss of rear drive control.

4. Wiring or Power Supply Problems

Damaged wiring, weak power supply or poor connector contact can create no-communication errors and unstable module behaviour.

Warranty

12-Month Warranty: This used Haldex control unit has been tested for correct operation and is supplied with a 12-month warranty under normal operating conditions.

Warranty Coverage Includes:

• Internal control unit malfunction
• Communication failures caused by the module itself
• Faults related to internal controller operation

Warranty Exclusions:

• Incorrect installation or incompatible vehicle fitment
• External wiring, valve or hydraulic system faults
• Physical damage, water damage after installation or mishandling

Questions or Need Help?

If you have any questions about compatibility, diagnostics, or installation, contact us and we will help you choose the correct Haldex solution for your Volvo.

Important Purchase Information

• Please verify this part fits your specific vehicle before placing an order
• Photos are for illustrative purposes only
• Worldwide shipping is available – if your country is not shown at checkout, contact us directly
• Replacing Haldex oil during installation is recommended
• Online support is included if the module requires coding after installation
