• Haldex pump 5gen for volvo land rover range rover
  • 31367750 volvo lr051321 land rover haldex pump
  • pump awd 4x4 5gen
1 3

Aftermarket

31367750 Haldex Pump Gen 5 New - Volvo / Land Rover

31367750 Haldex Pump Gen 5 New - Volvo / Land Rover

€114,90 EUR
€114,90 EUR
Sale Sold out
  • Warranty
  • Online Support
  • Express Shipping

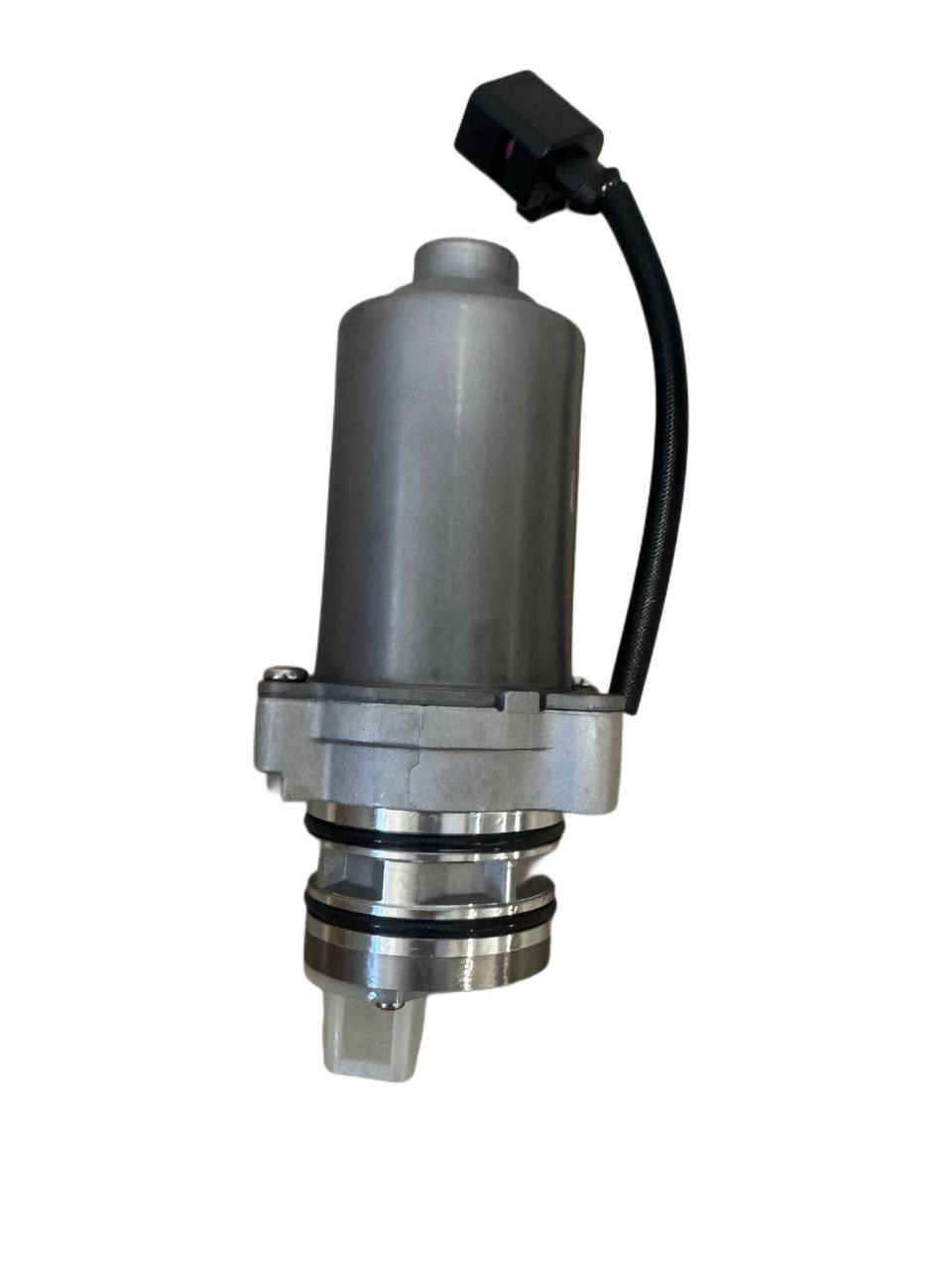

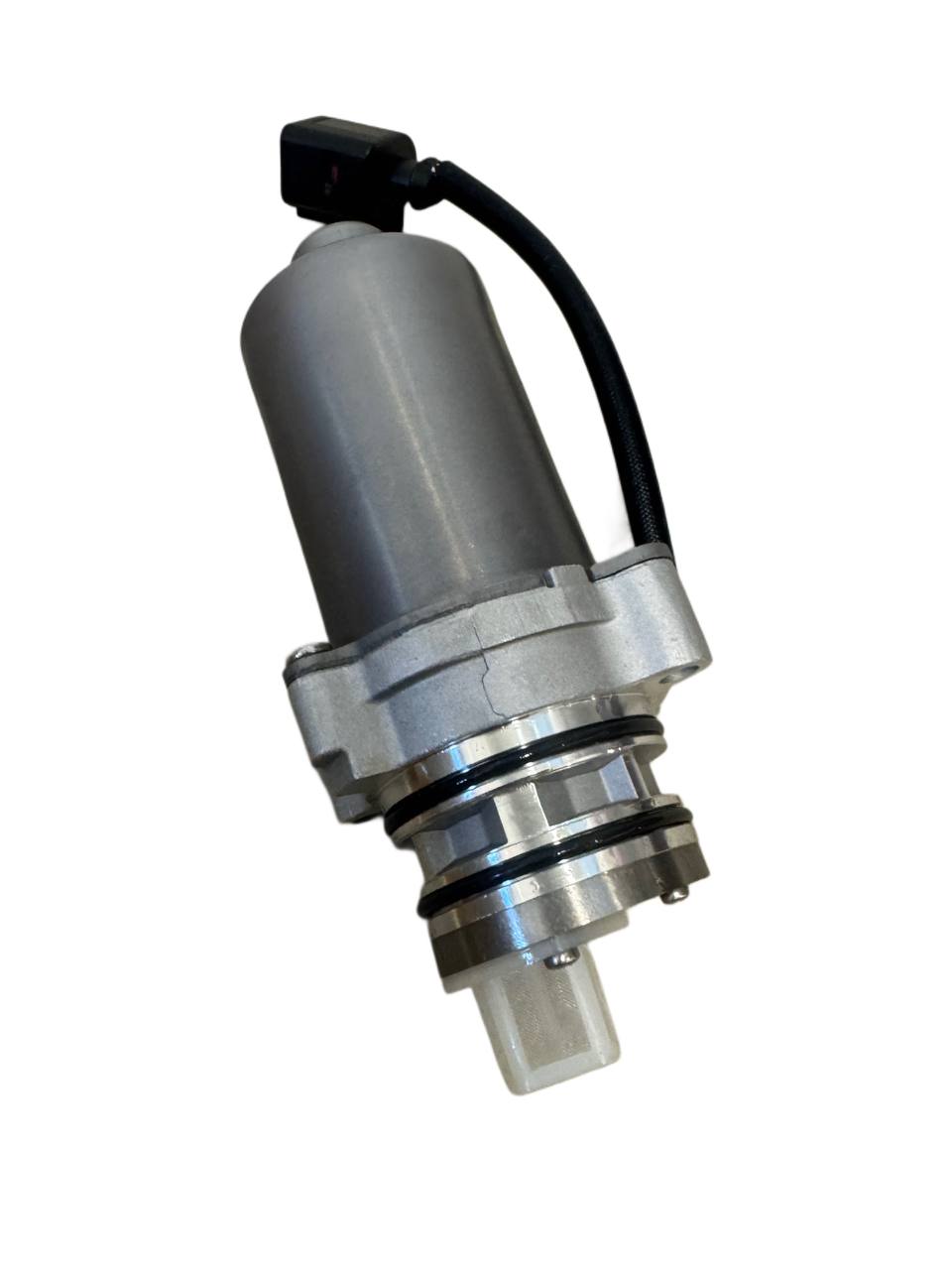

31367750 Haldex Pump Gen 5 | New

31367750 Haldex Pump Gen 5 New - Volvo / Land Rover

Part Number: 31367750

New aftermarket replacement pre-charge pump for 5th generation Haldex / AOC AWD systems in Volvo and Land Rover vehicles

System Type Haldex / AOC AWD 5th Generation
Condition New Fully Functional
Manufacturer Aftermarket
Component Pre-Charge Pump

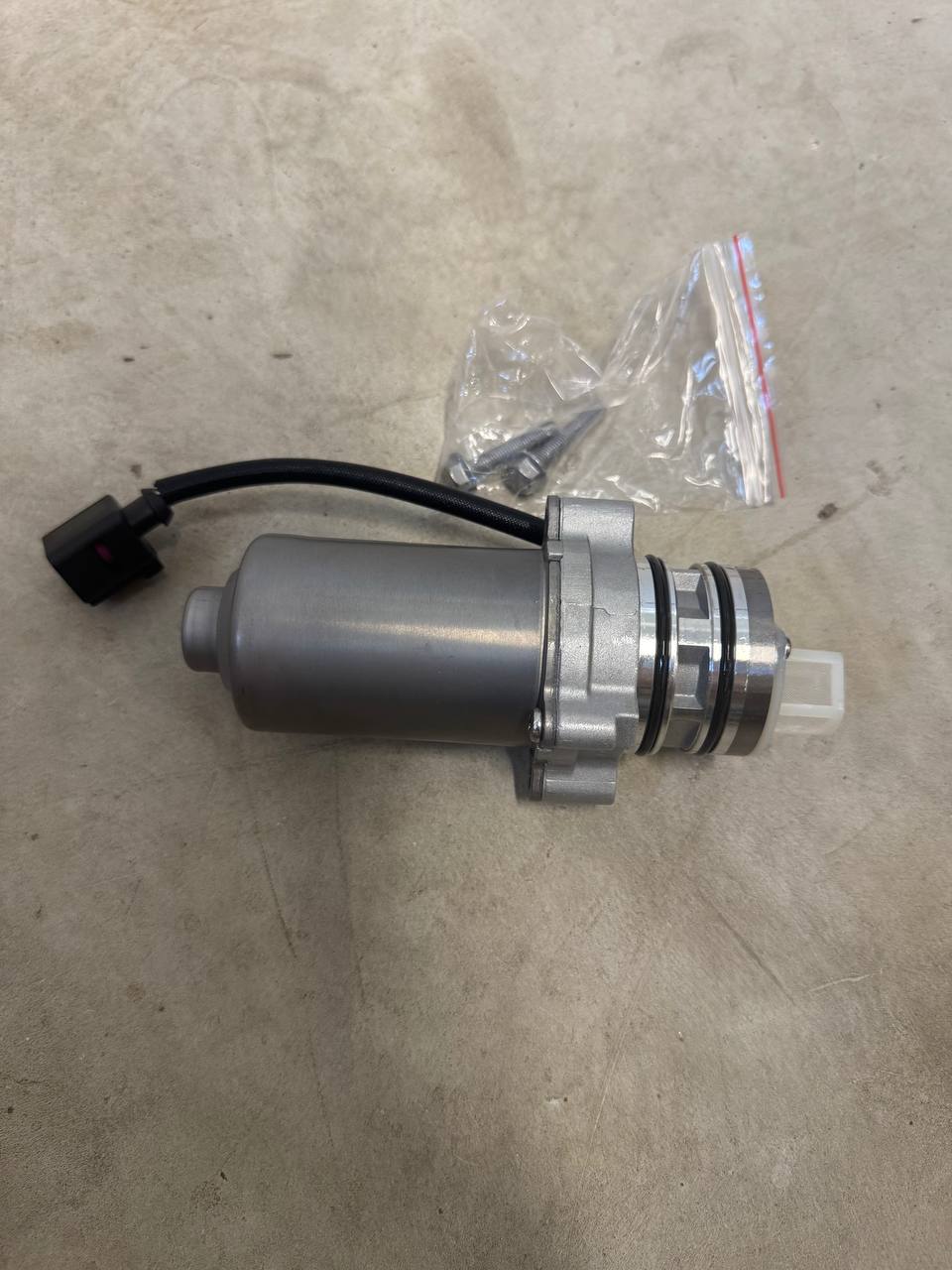

Package Includes Pump + 2 Screws
Warranty 12 Months
Tested & Ready for Installation This high-quality replacement Haldex pump restores the oil pressure required for rear AWD clutch engagement in Gen 5 systems. It is an ideal solution for vehicles showing AWD failure messages, rear-wheel slippage, or pump-related fault codes.

OEM Part Numbers

Main OEM Number:

31367750

Related Reference Numbers:

LR051321 • 2002773 • 31325411 • 31367372 • 31367426 • 31367439

Always Verify Your Part Number Before placing an order, check the OEM number printed directly on your existing Haldex pump and confirm it matches 31367750. If you are unsure, contact us with your VIN number and we will help verify fitment.

Technical Specifications

System Type:
Haldex / AOC AWD 5th Generation
Component:
Pre-Charge Pump / Oil Pressure Pump
Application:
Volvo and Land Rover AWD vehicles with 5th Gen Haldex / AOC coupling
Manufacturer:
Aftermarket replacement for OEM 31367750
OEM Number:
31367750
Related Land Rover Number:
LR051321
Included:
1x pump + 2x screws
Part Condition:
New
Warranty Period:
12 Months

Product Description

This new aftermarket Haldex pump with part number 31367750 is designed for 5th generation Haldex / AOC AWD systems used in selected Volvo and Land Rover vehicles. The pump supplies the hydraulic oil pressure needed to clamp the multi-plate clutch pack and engage the rear wheels when traction is required.

What This Pump Does

  • Builds hydraulic pressure for rear AWD clutch activation
  • Restores rear-wheel engagement when the front wheels begin to slip
  • Supports proper operation of the DEM / AWD control system
  • Helps eliminate AWD failure symptoms caused by a worn or blocked pump
Service Recommendation When replacing the Gen 5 Haldex pump, we strongly recommend inspecting and cleaning the pump strainer, filling with fresh Haldex oil, and performing the correct calibration procedure after service.

Vehicle Compatibility

The 31367750 Haldex pump is suitable for selected Volvo and Land Rover vehicles equipped with 5th generation Haldex / AOC AWD. Always verify the exact OEM part number before ordering.

Suitable for the Following Vehicle Models

  • Volvo V40 Cross Country (2013 - 2019)
  • Volvo S60 (2013 - 2018)
  • Volvo V60 (2013 - 2018)
  • Volvo V60 (2019 - )
  • Volvo S80 (2013 - 2016)
  • Volvo V70 (2013 - 2016)
  • Volvo S90 (2017 - )
  • Volvo V90 (2017 - )
  • Volvo V90 Cross Country (2017 - )
  • Volvo XC40 (2017 - )
  • Volvo XC60 (2013 - 2017)
  • Volvo XC60 (2018 - )
  • Volvo XC70 (2013 - 2016)
  • Volvo XC90 (2010 - 2014)
  • Volvo XC90 (2015 - )
  • Land Rover Discovery Sport (2014 - )
  • Land Rover Discovery V (L462) (2016 - )
  • Land Rover Freelander 2 (2012 - 2014)
  • Range Rover Evoque (2014 - )
Not Sure About Compatibility? If you are unsure whether this pump fits your vehicle, send us your VIN number or the OEM number from your existing pump. We will help confirm compatibility before you order.

Common Fault Codes & Symptoms

A faulty Gen 5 Haldex pump can cause rear AWD loss, AWD disabled messages, or pressure-related DEM faults. Common symptoms and diagnostic codes include:

  • P1889-71 Oil pressure pump performance fault / possible internal leak or pump damage
  • P1889-18 Air entered the AWD clutch package during filling / bleeding issue
  • P1889-14 Oil pressure pump performance – circuit short to ground or open circuit
  • DEM-0006 Often pump-related AWD pressure / pump fault
  • DEM-0007 Often pressure sensor related, but may also be caused by pump issues
  • Rear-wheel slippage / front wheels spinning without rear engagement
  • AWD failure message on dashboard
  • ESP / traction warning lights
  • AWD system disabled or intermittent AWD operation
Diagnostic Tip If the pump strainer is clogged, the pump must work harder and may eventually burn out. On Volvo systems, pump issues are commonly logged in the DEM / AWD module and should be diagnosed before replacing other components.

Installation & Service Notes

Recommended Steps

  • Verify the exact OEM number on the original Haldex pump
  • Remove the pump and inspect the strainer / gauze screen
  • Clean the strainer with a lint-free cloth only
  • Do not use cleaning liquids inside the pump sump or coupling housing
  • Fill the coupling with fresh Haldex oil to the correct level
  • Perform the correct calibration procedure after service
  • Clear AWD / DEM fault codes after installation
Important Service Note A clogged strainer is one of the most common causes of pump failure on Gen 5 systems. Replacing the pump without checking the strainer and renewing the oil can shorten the life of the new unit.

Why Haldex Pumps Fail

1. Clogged Strainer / Gauze Screen

When the pump screen becomes blocked by contamination, the pump has to work harder to build pressure and can eventually burn out.

2. Old or Contaminated Oil

Neglected Haldex oil increases internal resistance and accelerates wear of the pump motor and pressure circuit.

3. Internal Pump Wear

Worn internal components, leaks, or electrical faults can cause pressure loss and AWD performance problems.

4. Incorrect Filling or Missing Calibration

Air in the coupling or missing calibration after service can trigger Gen 5 pressure faults and unstable AWD operation.

Quality Assurance & Warranty

12-Month Warranty: This new Haldex pump is supplied with a 12-month functionality warranty under normal operating conditions.

Warranty Coverage Includes:

  • Pump motor malfunction
  • Internal functional failure of the replacement unit
  • Operational defects under normal use

Warranty Exclusions:

  • Incorrect installation
  • Failure caused by contaminated oil or blocked strainer
  • External wiring, DEM, or pressure sensor faults
  • Physical damage or misuse

Questions or Need Help?

Our technical team is ready to assist with compatibility checks, installation guidance and product selection.

Contact

Important Purchase Information

  • Please verify this part fits your specific vehicle before placing an order
  • Photos are for illustrative purposes only
  • Worldwide shipping is available
  • If your country is not listed at checkout, contact us and the order can be processed manually
  • We recommend inspecting the pump strainer and replacing the Haldex oil during service
  • Please check if this product fits your car before purchase
